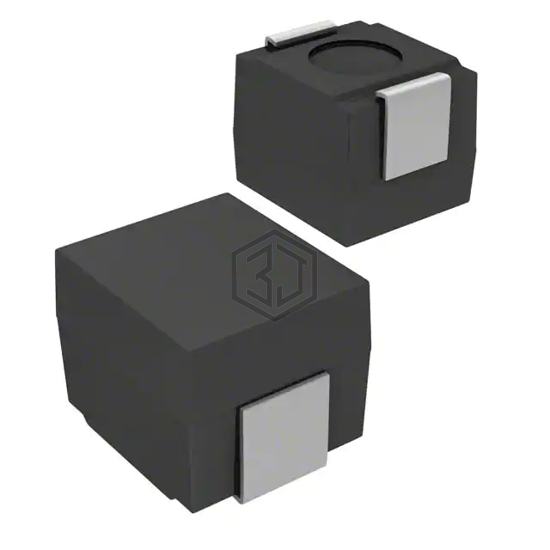

FIXED IND 750NH 275MA 1.95OHM SM
HF1008R-751G is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 750NH 275MA 1.95OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 275 mA.
In Stock: 1,353
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 750 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 275 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.95Ohm Max |
| Q @ Freq | 30 @ 25MHz |
| Frequency - Self Resonant | 330MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.115" L x 0.105" W (2.92mm x 2.66mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
Submit your RFQ for HF1008R-751G and get a quote within 24 hours.
