FIXED IND 4.7UH 273MA 2 OHM SMD

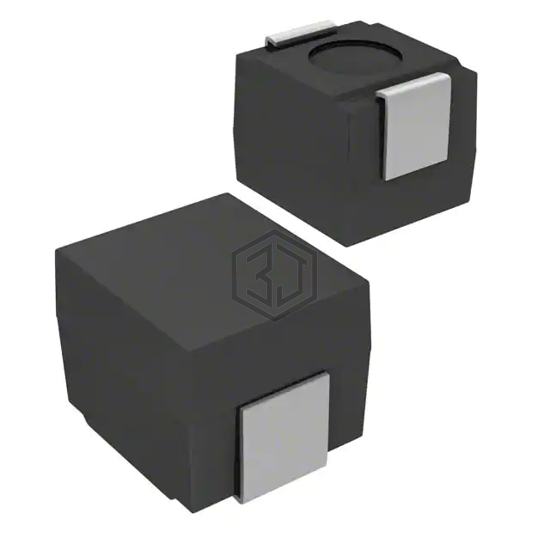

HF1008R-472G is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 4.7UH 273MA 2 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 273 mA.
In Stock: 5,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±2% |
| Current Rating (Amps) | 273 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2Ohm Max |
| Q @ Freq | 30 @ 7.9MHz |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.115" L x 0.105" W (2.92mm x 2.66mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
Submit your RFQ for HF1008R-472G and get a quote within 24 hours.
