FIXED IND 620NH 290MA 1.75OHM SM

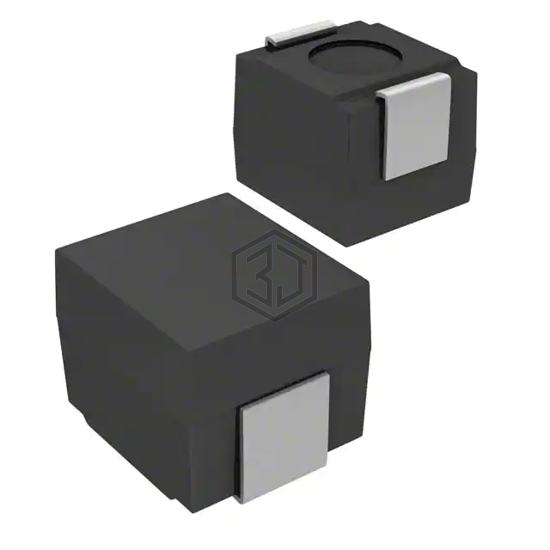

HF1008-621J is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 620NH 290MA 1.75OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 290 mA.
In Stock: 9,095
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 620 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 290 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.75Ohm Max |
| Q @ Freq | 30 @ 25MHz |
| Frequency - Self Resonant | 375MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.115" L x 0.105" W (2.92mm x 2.66mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
Submit your RFQ for HF1008-621J and get a quote within 24 hours.
