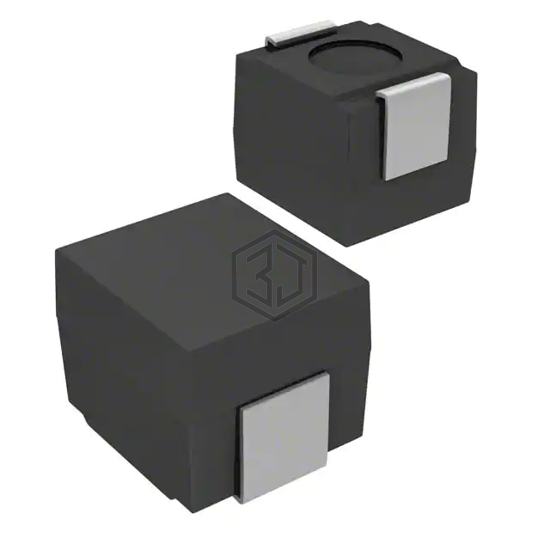

FIXED IND 8.2NH 1.275A 75MOHM SM
HF1008-082M is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 8.2NH 1.275A 75MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.275 A.
In Stock: 6,985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Non-Magnetic |
| Inductance | 8.2 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.275 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 75mOhm Max |
| Q @ Freq | 40 @ 50MHz |
| Frequency - Self Resonant | 3GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.105" L x 0.095" W (2.66mm x 2.41mm) |
| Height - Seated (Max) | 0.095" (2.41mm) |
