FIXED IND 29UH 6.57A 25 MOHM SMD

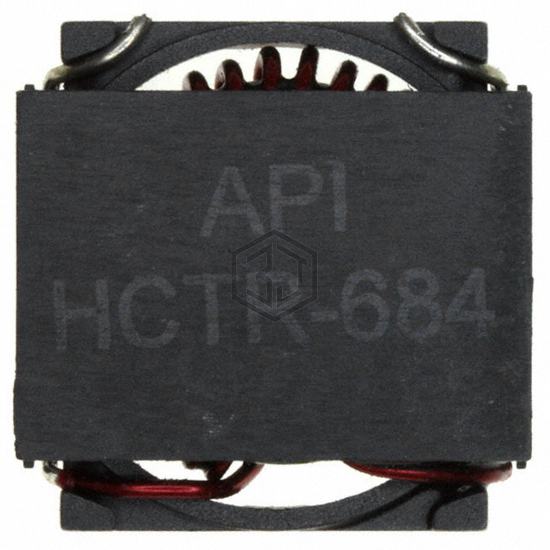

HCTR-684 is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 29UH 6.57A 25 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 130°C, package / case Nonstandard, current rating (amps) 6.57 A.
In Stock: 961
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 29 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 6.57 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 25mOhm Max |
| Q @ Freq | 30 @ 100kHz |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Operating Temperature | -30°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.945" L x 0.940" W (24.00mm x 23.88mm) |
| Height - Seated (Max) | 0.400" (10.16mm) |
Submit your RFQ for HCTR-684 and get a quote within 24 hours.
