FIXED IND 150UH 4A 98 MOHM TH

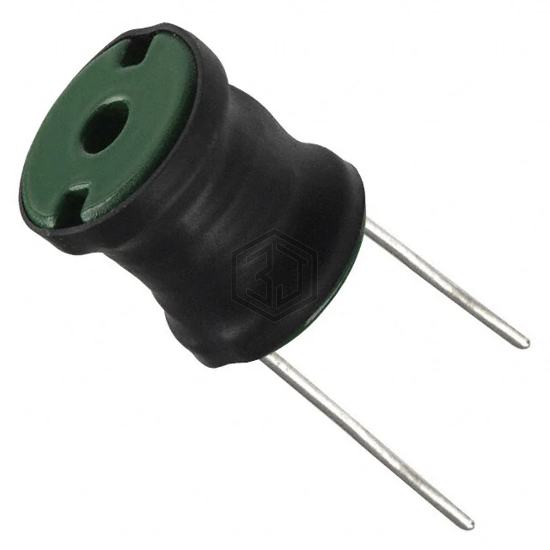

DC780R-154K is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 150UH 4A 98 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 4 A.
In Stock: 1,690
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 4 A |
| Current - Saturation (Isat) | 8.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 98mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.772" Dia (19.60mm) |
| Height - Seated (Max) | 0.831" (21.10mm) |
Submit your RFQ for DC780R-154K and get a quote within 24 hours.
