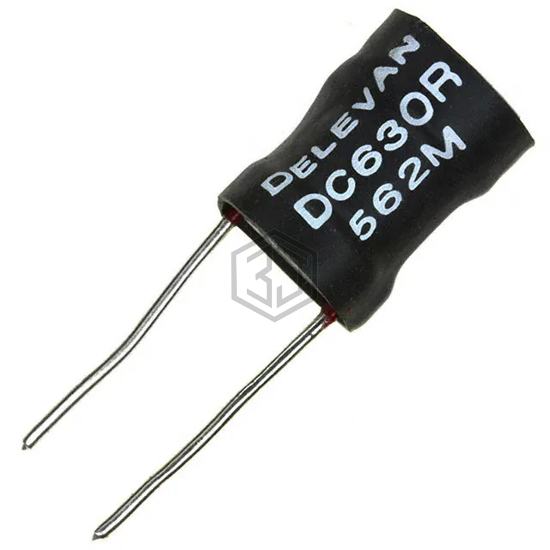

FIXED IND 5.6UH 11.7A 7 MOHM TH
DC630R-562M is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 5.6UH 11.7A 7 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 11.7 A.
In Stock: 808
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11.7 A |
| Current - Saturation (Isat) | 29A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.830" (21.08mm) |
Submit your RFQ for DC630R-562M and get a quote within 24 hours.
