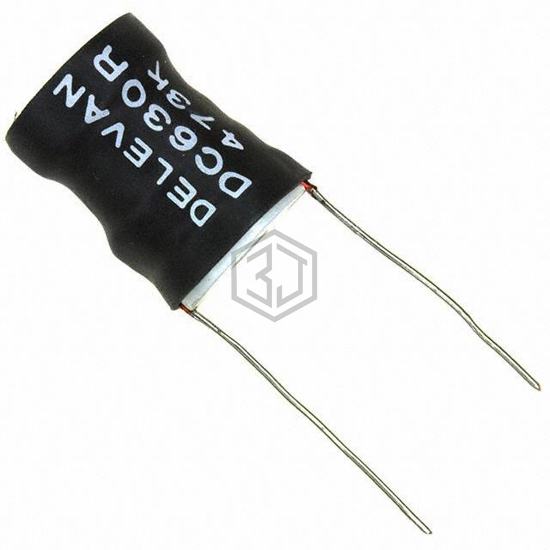

FIXED IND 47UH 3.98A 62 MOHM TH
DC630R-473K is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 47UH 3.98A 62 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 3.98 A.
In Stock: 484
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 47 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 3.98 A |
| Current - Saturation (Isat) | 10A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 62mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.830" (21.08mm) |
