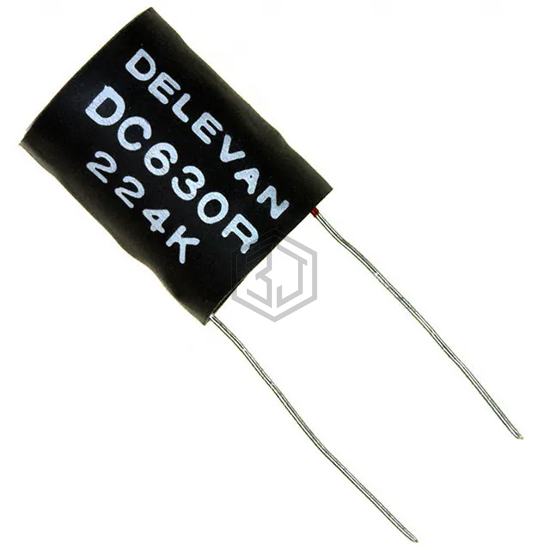

FIXED IND 220UH 2.42A 168MOHM TH
DC630R-224K is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 220UH 2.42A 168MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 2.42 A.
In Stock: 382
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.42 A |
| Current - Saturation (Isat) | 4.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 168mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.830" (21.08mm) |
Submit your RFQ for DC630R-224K and get a quote within 24 hours.
