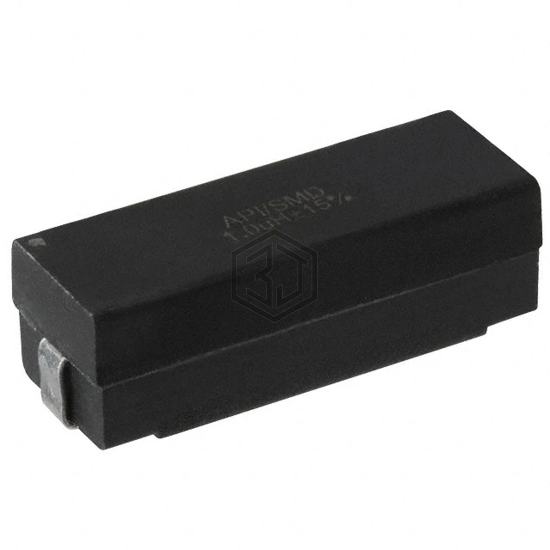

FIXED IND 1.8UH 5.43A 12MOHM SMD
8532R-04L is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 1.8UH 5.43A 12MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.43 A.
In Stock: 4,016
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1.8 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 5.43 A |
| Current - Saturation (Isat) | 4.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 12mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.860" L x 0.320" W (21.84mm x 8.12mm) |
| Height - Seated (Max) | 0.286" (7.26mm) |
Submit your RFQ for 8532R-04L and get a quote within 24 hours.
