FIXED IND 4.7MH 510MA 3.79OHM SM

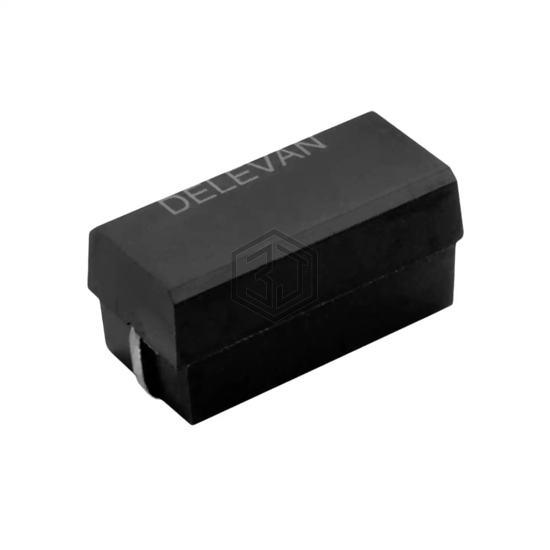

5500R-475K is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 4.7MH 510MA 3.79OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 510 mA.
In Stock: 159
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 4.7 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 510 mA |
| Current - Saturation (Isat) | 250mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.79Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.050" L x 0.495" W (26.67mm x 12.57mm) |
| Height - Seated (Max) | 0.520" (13.21mm) |
