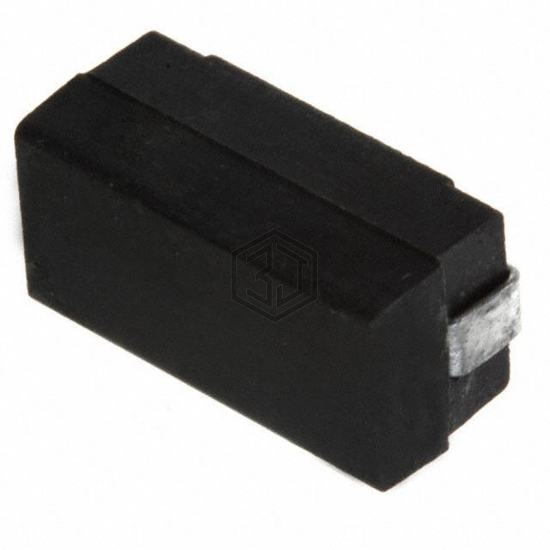

FIXED IND 180UH 224MA 6.75OHM SM
5022R-184J is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 180UH 224MA 6.75OHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 224 mA.
In Stock: 5,953
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron |
| Inductance | 180 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 224 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.75Ohm Max |
| Q @ Freq | 65 @ 790kHz |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 790 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Height - Seated (Max) | 0.230" (5.84mm) |
Submit your RFQ for 5022R-184J and get a quote within 24 hours.
