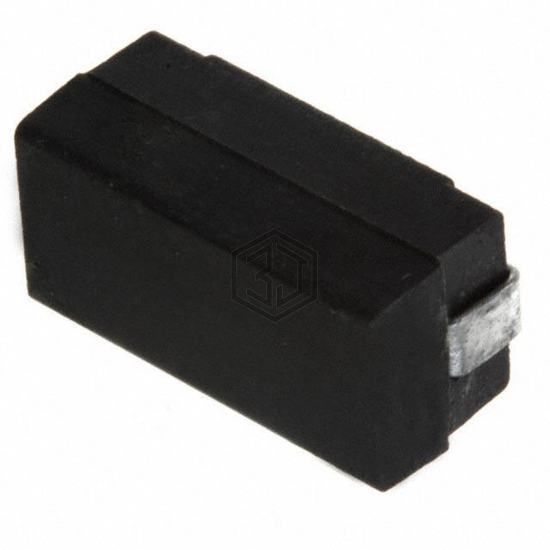

FIXED IND 91UH 280MA 4.3 OHM SMD
5022-913F is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 91UH 280MA 4.3 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 280 mA.
In Stock: 3,254
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Iron |
| Inductance | 91 µH |
| Tolerance | ±1% |
| Current Rating (Amps) | 280 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.3Ohm Max |
| Q @ Freq | 50 @ 2.5MHz |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Height - Seated (Max) | 0.230" (5.80mm) |
Submit your RFQ for 5022-913F and get a quote within 24 hours.
