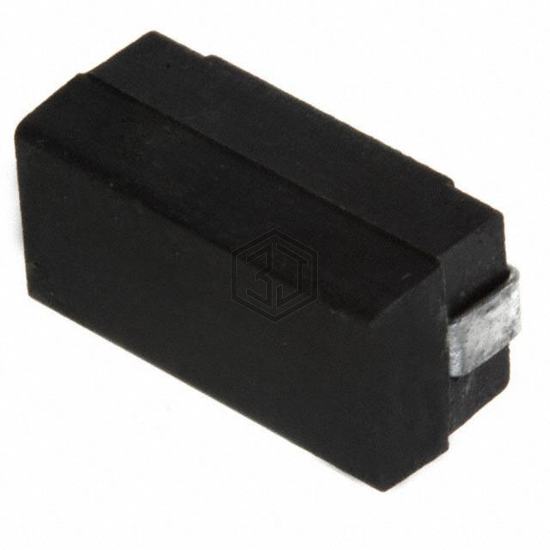

FIXED IND 150NH 3.5A 30 MOHM SMD
5022-151J is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 150NH 3.5A 30 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.5 A.
In Stock: 800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Phenolic |
| Inductance | 150 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | 50 @ 25MHz |
| Frequency - Self Resonant | 525MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.250" W (13.21mm x 6.35mm) |
| Height - Seated (Max) | 0.230" (5.80mm) |
