FIXED IND 27UH 1.48A 179MOHM SMD

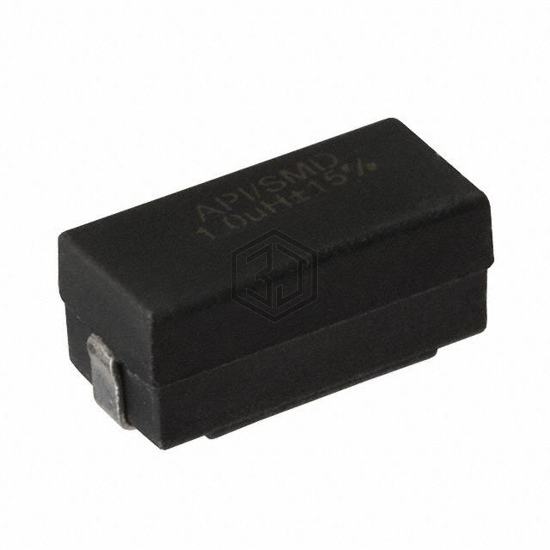

4922R-18L is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 27UH 1.48A 179MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.48 A.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 27 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 1.48 A |
| Current - Saturation (Isat) | 1.48A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 179mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.505" L x 0.240" W (12.82mm x 6.09mm) |
| Height - Seated (Max) | 0.230" (5.84mm) |
Submit your RFQ for 4922R-18L and get a quote within 24 hours.
