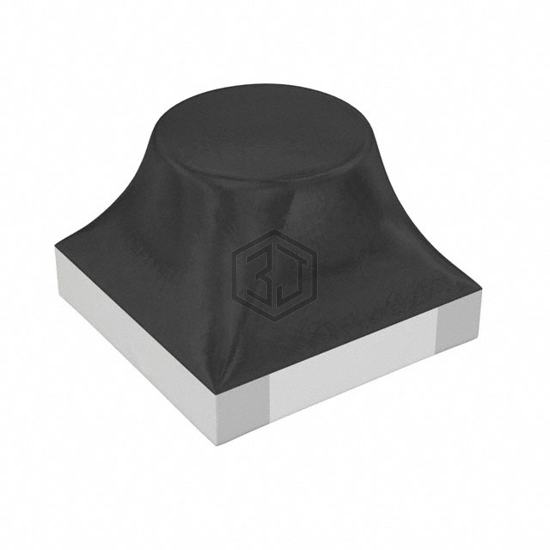

FIXED IND 1.2UH 360MA 740MOHM SM
103-122FS is a Fixed Inductors manufactured by API Delevan Inc.. FIXED IND 1.2UH 360MA 740MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, 2 Lead, current rating (amps) 360 mA.
In Stock: 4,090
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 1.2 µH |
| Tolerance | ±1% |
| Current Rating (Amps) | 360 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 740mOhm Max |
| Q @ Freq | 22 @ 7.9MHz |
| Frequency - Self Resonant | 130MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 2 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.100" L x 0.100" W (2.54mm x 2.54mm) |
| Height - Seated (Max) | 0.075" (1.91mm) |
Submit your RFQ for 103-122FS and get a quote within 24 hours.
