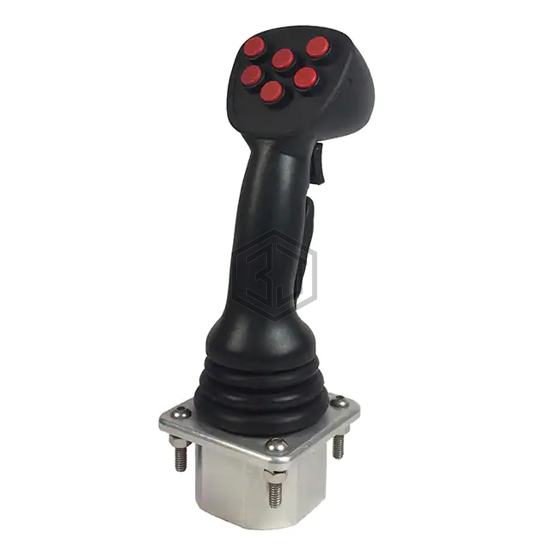

XD SERIES, SAE CANBUS J1939-71,
XDGTT2LNNCYYGAN is a Navigation Switches, Joystick manufactured by APEM Inc.. XD SERIES, SAE CANBUS J1939-71,. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 85°C, voltage - supply 6 ~ 35VDC, termination style Connector.
In Stock: 1,433
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Joystick, 2 - Axis |
| Actuator Type | Joystick |
| Switch Function | 4-Way Directional |
| Functions, Extra | 6 Pushbuttons, Deadman, Index Trigger |
| Output | Digital (Hall Effect Over CANbus Interface) |
| Voltage - Supply | 6 ~ 35VDC |
| Current Rating (Amps) | - |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| Contact Material | - |
| Contact Finish | - |
| Resistance | - |
| Mounting Type | Panel Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 85°C |
| Panel Cutout Dimensions | Square - 66.29mm² |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
Submit your RFQ for XDGTT2LNNCYYGAN and get a quote within 24 hours.
