LED PM PROMINENT GR/RD/YLW

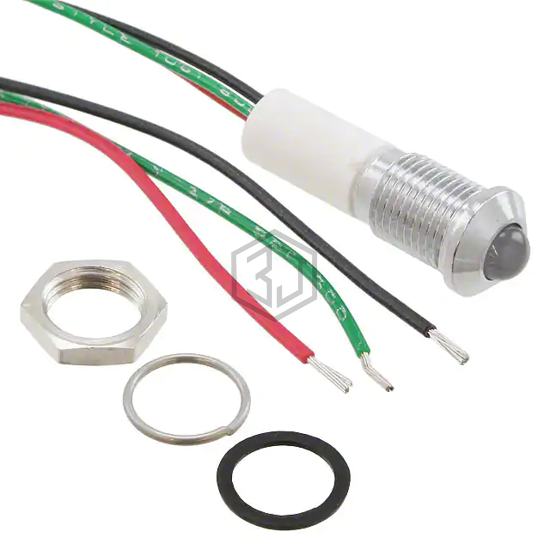

Q8P3CZZRYG12E is a Panel Indicators, Pilot Lights manufactured by APEM Inc.. LED PM PROMINENT GR/RD/YLW. Key specifications: voltage 12V Green, 12V Red, 12V Yellow, current 20mA Green, 20mA Red, 20mA Yellow, termination style Wire Leads - 7.87" (200.00mm), ingress protection IP67.
In Stock: 79
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | LED |
| Lamp Color | Green, Red, Yellow |
| Lens Color | - |
| Lens Transparency | Diffused |
| Ratings | DC |
| Voltage | 12V Green, 12V Red, 12V Yellow |
| Current | 20mA Green, 20mA Red, 20mA Yellow |
| Panel Cutout Shape | Round |
| Panel Cutout Dimensions | 0.31" (7.87mm) |
| Lens Size | 5mm, T-1 3/4 |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 15mcd Green, 60mcd Red, 13mcd Yellow |
| Wavelength - Peak | - |
| Viewing Angle | 100° |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Ingress Protection | IP67 |
| Features | - |
Submit your RFQ for Q8P3CZZRYG12E and get a quote within 24 hours.
