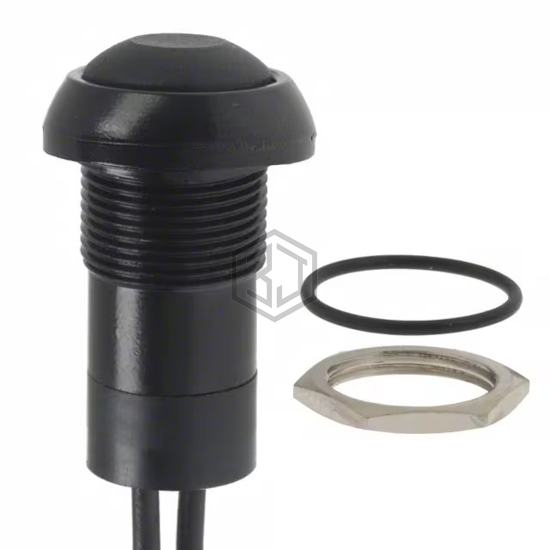

SWITCH PUSHBUTTON SPST 4A 12V
IPR1FAD2 is a Pushbutton Switches manufactured by APEM Inc.. SWITCH PUSHBUTTON SPST 4A 12V. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 85°C, voltage rating - dc 12 V, current rating (amps) 2A (AC), 4A (DC).
In Stock: 362
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard |
| Circuit | SPST |
| Switch Function | Off-On |
| Current Rating (Amps) | 2A (AC), 4A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 12 V |
| Actuator Type | Round, Button |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Black |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Circular - 13.60mm Dia |
| Operating Temperature | -40°C ~ 85°C |
