SWITCH PUSH SPST-NO 0.5A 48V

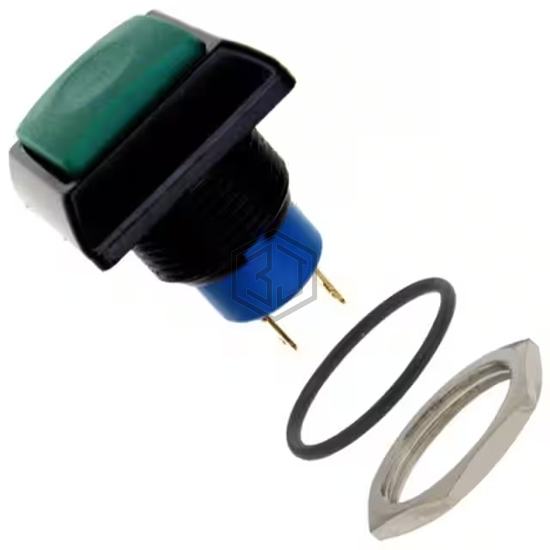

IPC3SAD3 is a Pushbutton Switches manufactured by APEM Inc.. SWITCH PUSH SPST-NO 0.5A 48V. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 125°C, voltage rating - dc 48 V, current rating (amps) 500mA (AC), 200mA (DC).
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 500mA (AC), 200mA (DC) |
| Voltage Rating - AC | 48 V |
| Voltage Rating - DC | 48 V |
| Actuator Type | Square, Button |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Green |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Tactile Feedback |
| Panel Cutout Dimensions | Circular - 13.60mm Dia |
| Operating Temperature | -40°C ~ 125°C |
Submit your RFQ for IPC3SAD3 and get a quote within 24 hours.
