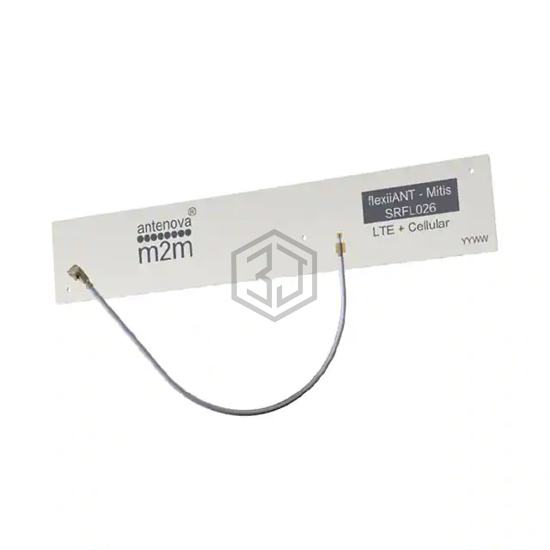

RF ANT 748MHZ/892MHZ FLAT PATCH
SRFL026-100 is a RF Antennas manufactured by Antenova. RF ANT 748MHZ/892MHZ FLAT PATCH. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, frequency range 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz.
In Stock: 1,425
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz |
| Frequency Range | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 5 |
| VSWR | 3.1 |
| Return Loss | -10dB |
| Gain | 3.5dBi |
| Power - Max | - |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.006" (0.15mm) |
| Applications | GSM, LTE, W-CDMA |
Submit your RFQ for SRFL026-100 and get a quote within 24 hours.
