LEPIDA LTE ANTENNA

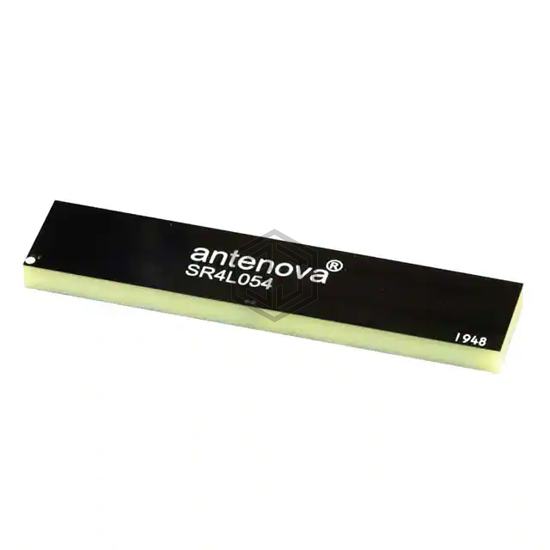

SR4L054 is a RF Antennas manufactured by Antenova. LEPIDA LTE ANTENNA. Key specifications: mounting type Surface Mount, termination Solder, frequency range 617MHz ~ 698MHz, 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz.
In Stock: 6,434
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz |
| Antenna Type | Chip |
| Number of Bands | 7 |
| VSWR | 1.8, 2.1, 2.2, 2.5, 3.8 |
| Return Loss | -5dB, -6dB, -10dB |
| Gain | 0.5dBi, 1dBi, 2.5dBi, 1.6dBi, 0.5dBi, 1dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.130" (3.30mm) |
| Applications | 4G, 5G, GSM, LTE, WCDMA |
Submit your RFQ for SR4L054 and get a quote within 24 hours.
