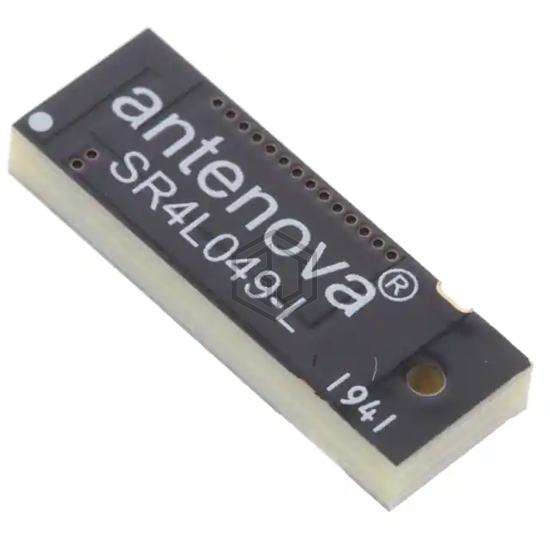

RF ANT 875.5MHZ/1.94GHZ PCB TRCE
SR4L049-L is a RF Antennas manufactured by Antenova. RF ANT 875.5MHZ/1.94GHZ PCB TRCE. Key specifications: mounting type Surface Mount, termination Solder, frequency range 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz.
In Stock: 24,830
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 875.5MHz, 1.94GHz, 2.35GHz, 2.595GHz |
| Frequency Range | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 4 |
| VSWR | 1.9, 2.3, 3.6, 4.1 |
| Return Loss | -4.5dB, -5dB, -7.8dB, -9.7dB |
| Gain | 1.9dBi, 3dBi, 3.3dBi, 3.5dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.130" (3.30mm) |
| Applications | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
