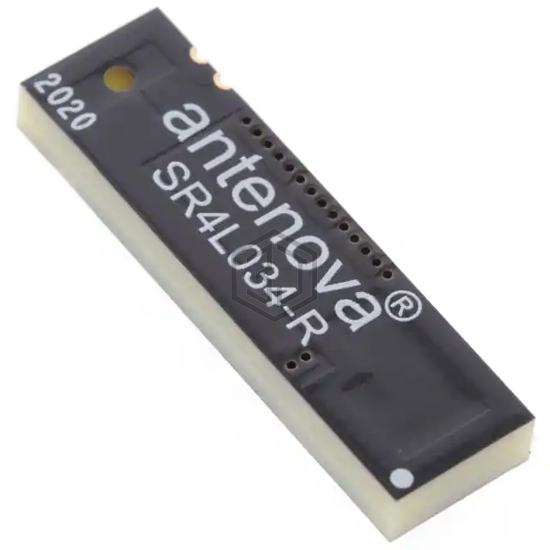

RF ANT 829MHZ/1.94GHZ PCB TRACE
SR4L034-R is a RF Antennas manufactured by Antenova. RF ANT 829MHZ/1.94GHZ PCB TRACE. Key specifications: mounting type Surface Mount, termination Solder, frequency range 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz.
In Stock: 10,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.94GHz, 2.35GHz, 2.595GHz |
| Frequency Range | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 4 |
| VSWR | 2.5, 2.8, 3.5, 3.7 |
| Return Loss | -4.9dB, -5.1dB, -6dB, -6.6dB, -7dB |
| Gain | 0.4dBi, 1.6dBi, 2.1dBi, 3.5dBi, 3.6dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.130" (3.30mm) |
| Applications | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
Submit your RFQ for SR4L034-R and get a quote within 24 hours.
