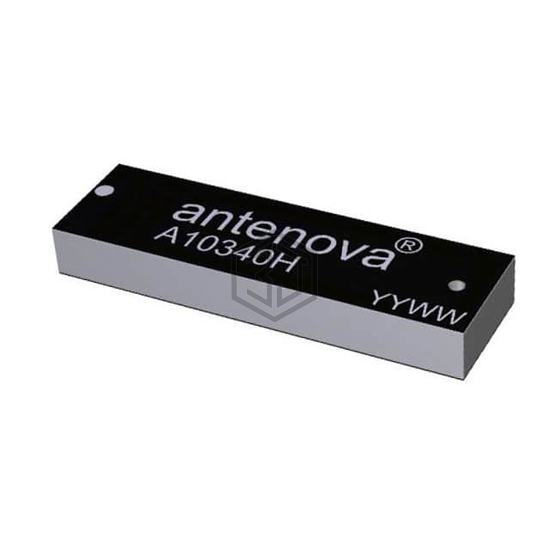

A10340H
ANT 824-960MHZ GSM/WCDMA
A10340H is a RF Antennas manufactured by Antenova. ANT 824-960MHZ GSM/WCDMA. Key specifications: mounting type Surface Mount, termination Solder, frequency range 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz.
In Stock: 1
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| RF Family/Standard | Cellular |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 5 |
| VSWR | 3.1 |
| Return Loss | -6dB |
| Gain | 1.7dBi, 3dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.126" (3.20mm) |
| Applications | GSM, UMTS |
Frequently Asked Questions
A10340H is a RF Antennas manufactured by Antenova. ANT 824-960MHZ GSM/WCDMA
The mounting type of A10340H is Surface Mount.
The termination type of A10340H is Solder.
The frequency of A10340H is 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz.
Yes, A10340H is listed as Obsolete. Consider requesting a quote for alternative parts.
