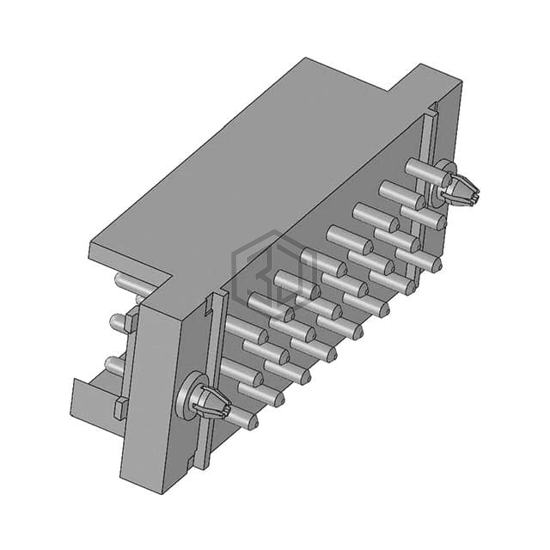

POWERMOD 3X24 PIN STRAIGHT PCB
PM324MBAOSP is a Rectangular Connectors - Headers, Male Pins manufactured by Anderson Power Products, Inc.. POWERMOD 3X24 PIN STRAIGHT PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 180°C, voltage rating 600V, contact material Copper Alloy.
In Stock: 797
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin, Power |
| Pitch - Mating | 0.197" (5.00mm) |
| Number of Positions | 24 |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.197" (5.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Contact Length - Mating | - |
| Contact Length - Post | 0.150" (3.81mm) |
| Overall Contact Length | - |
| Insulation Height | 0.600" (15.24mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin Alloy |
| Contact Material | Copper Alloy |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Features | Board Lock |
| Operating Temperature | -55°C ~ 180°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 30A |
| Voltage Rating | 600V |
