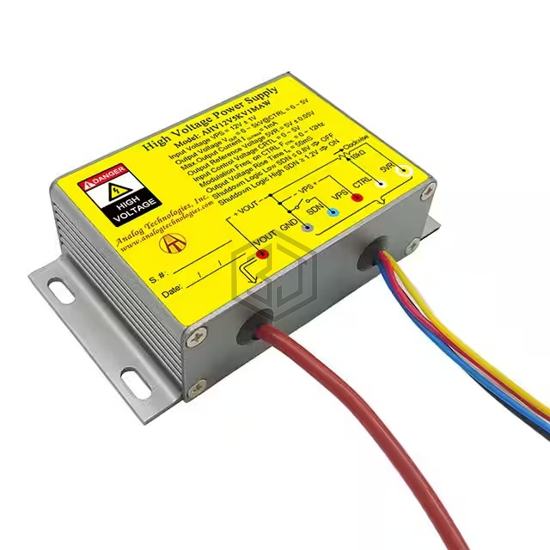

HV 12V to 5kV 5W DC-DC Converter
AHV12V5KV1MAW is a DC DC Converters manufactured by Analog Technologies, Inc.. HV 12V to 5kV 5W DC-DC Converter. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 55°C, package / case Module, current - output (max) 1mA.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 13V |
| Voltage - Output 1 | 5000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1mA |
| Power (Watts) | 5 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -10°C ~ 55°C |
| Efficiency | 70% |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Size / Dimension | 4.11" L x 2.36" W x 1.10" H (104.5mm x 60.0mm x 28.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for AHV12V5KV1MAW and get a quote within 24 hours.
