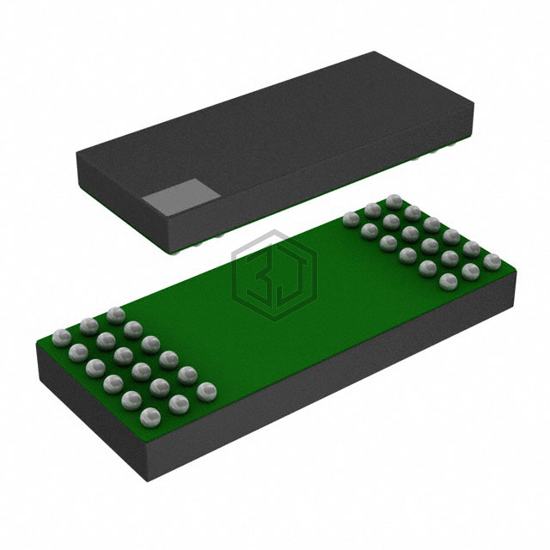

DGTL ISOL 6000VRMS 9CH SPI 36BGA
LTM2893IY#PBF is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISOL 6000VRMS 9CH SPI 36BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 36-BGA.
In Stock: 91
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Type | SPI |
| Isolated Power | No |
| Number of Channels | 9 |
| Inputs - Side 1/Side 2 | 6/6 |
| Channel Type | Bidirectional, Unidirectional |
| Voltage - Isolation | 6000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 36-BGA |
| Supplier Device Package | 36-BGA (15x6.25) |
Submit your RFQ for LTM2893IY#PBF and get a quote within 24 hours.
