DGTL ISOL 3500VRMS 6CH I2C 24BGA

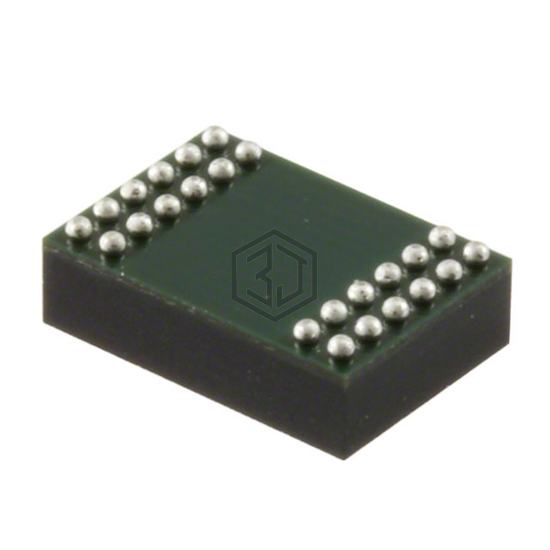

LTM2892IY-I#PBF is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISOL 3500VRMS 6CH I2C 24BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 24-BBGA.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Type | I²C |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 3/3 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3500Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Data Rate | 400kHz |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 250ns, 250ns (Max) |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-BBGA |
| Supplier Device Package | 24-BGA (9x6.25) |
Submit your RFQ for LTM2892IY-I#PBF and get a quote within 24 hours.
