DGTL ISOL 2500VRMS 6CH SPI 32BGA

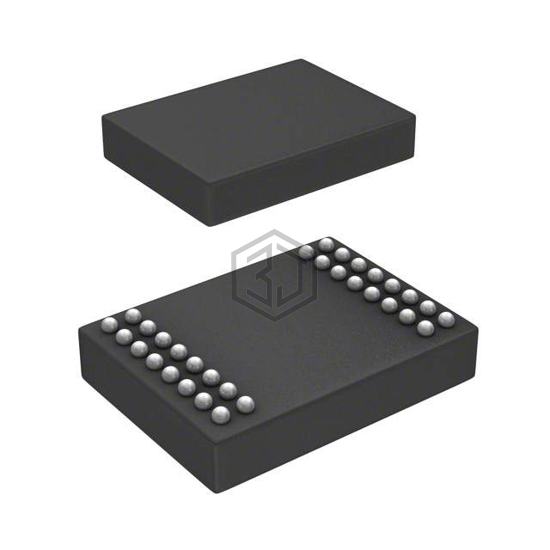

LTM2883IY-3S#PBF is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISOL 2500VRMS 6CH SPI 32BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 3.6V, package / case 32-BBGA Module.
In Stock: 1,017
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Type | SPI |
| Isolated Power | Yes |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 3/3 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 30kV/µs |
| Data Rate | 4MHz, 8MHz |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 3ns, 3ns |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-BBGA Module |
| Supplier Device Package | 32-BGA (15x11.25) |
