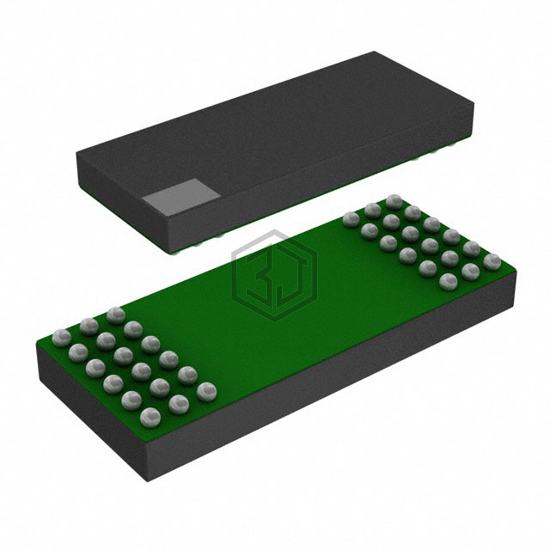

DGTL ISOL 7500VRMS 6CH SPI 36BGA
LTM2810IY-S#PBF is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISOL 7500VRMS 6CH SPI 36BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.62V ~ 5.5V, package / case 36-BGA Module.
In Stock: 1,718
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic Coupling |
| Type | SPI |
| Isolated Power | Yes |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 3/3 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 7500Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Data Rate | 10MHz |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 50ns |
| Rise / Fall Time (Typ) | 350ns, 250ns (Max) |
| Voltage - Supply | 1.62V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 36-BGA Module |
| Supplier Device Package | 36-BGA (22x6.25) |
Submit your RFQ for LTM2810IY-S#PBF and get a quote within 24 hours.
