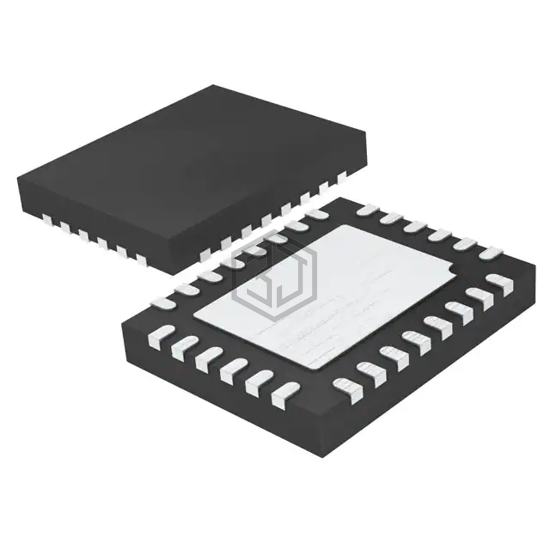

IC CHARGE PUMP DC/DC CTRLR 28QFN
LTC7820EUFD#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC CHARGE PUMP DC/DC CTRLR 28QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 6V ~ 72V, package / case 28-WFQFN Exposed Pad.
In Stock: 957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Number of Outputs | 1 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 72V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7820IUFD#PBF | Analog Devices Inc. | IC CHARGE PUMP DC/DC CTRLR 28QFN | 100% | View |
| LTC7820EUFD#PBF | Analog Devices Inc. | IC CHARGE PUMP DC/DC CTRLR 28QFN | 100% | View |
| LTC7820IUFD#TRPBF | Analog Devices Inc. | IC CHARGE PUMP DC/DC CTRLR 28QFN | 100% | View |
| LTC7817JUHF#WTRPBF | Analog Devices Inc. | 40V, 8UA IQ, 3MHZ, TRPLE BCKBST | 84% | View |
| LTC7817EUHF#PBF | Analog Devices Inc. | 40V, 8UA IQ, 3MHZ, TRPLE BCKBST | 84% | View |
| LTC7817JUHF#WPBF | Analog Devices Inc. | 40V, 8UA IQ, 3MHZ, TRPLE BCKBST | 84% | View |
Submit your RFQ for LTC7820EUFD#TRPBF and get a quote within 24 hours.
