IC REG CTRLR BUCK/BOOST

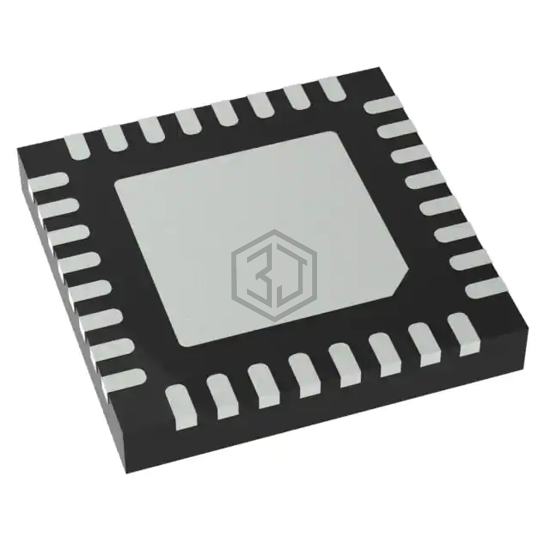

LTC7813EUH#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK/BOOST. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 60V, package / case 32-WFQFN Exposed Pad.
In Stock: 1,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 60V |
| Frequency - Switching | 105kHz ~ 835kHz, 350kHz ~ 535kHz |
| Duty Cycle (Max) | 96%, 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7813MPUH#PBF | Analog Devices Inc. | IC REG CTRLR BUCK/BOOST 32QFN | 100% | View |
| LTC7813EUH#PBF | Analog Devices Inc. | IC REG CTRLR BUCK/BOOST 32QFN | 100% | View |
| LTC7813IUH#PBF | Analog Devices Inc. | IC REG CTRLR BUCK/BOOST 32QFN | 100% | View |
| LTC7813MPUH#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK/BOOST | 100% | View |
| LTC7813HUH#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK/BOOST | 100% | View |
| LTC7813IUH#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK/BOOST | 100% | View |
Submit your RFQ for LTC7813EUH#TRPBF and get a quote within 24 hours.
