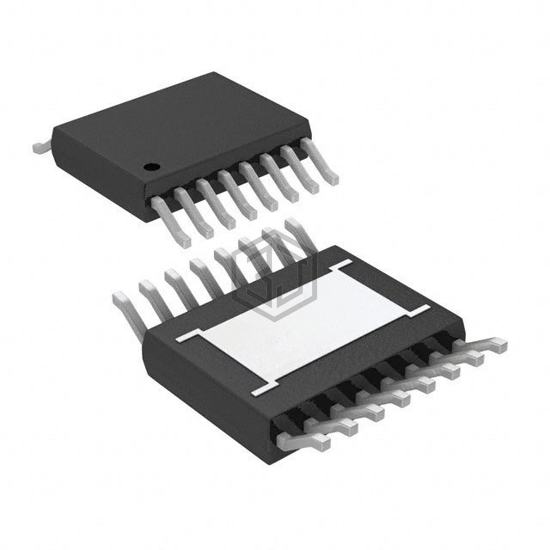

LOW IQ SYNCH BOOST CONTROLLER
LTC7804IMSE#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. LOW IQ SYNCH BOOST CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 16-TFSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 3,164
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 100kHz ~ 3MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 16-MSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7804HUD#TRPBF | Analog Devices Inc. | LOW IQ SYNCH BOOST CONTROLLER | 100% | View |
| LTC7804EUD#PBF | Analog Devices Inc. | LOW IQ SYNCHRONOUS BOOST CONTROL | 100% | View |
| LTC7804IUD#PBF | Analog Devices Inc. | LOW IQ SYNCHRONOUS BOOST CONTROL | 100% | View |
| LTC3897EFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK BOOST 38TSSOP | 72% | View |
| LTC3897IUHG-2#TRPBF | Analog Devices Inc. | PP SYNC BOOST CNTR W/ IN/ OUT PR | 72% | View |
| LTC3897IUHF#PBF | Analog Devices Inc. | IC REG CTRLR BUCK BOOST 38QFN | 72% | View |
Submit your RFQ for LTC7804IMSE#TRPBF and get a quote within 24 hours.
