LOW IQ SYNCHRONOUS BUCK CONTROLL

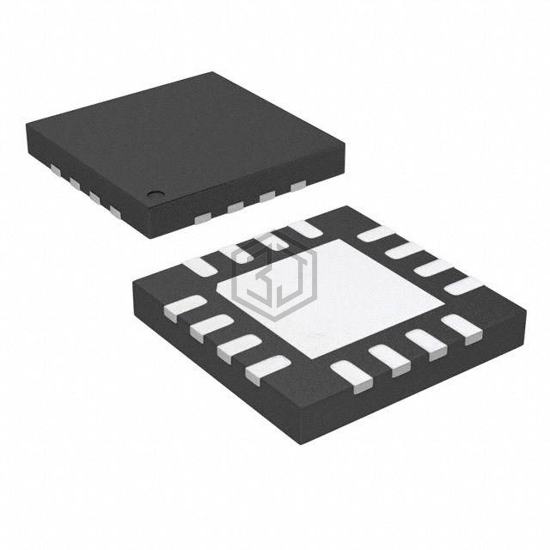

LTC7803JUD#WPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. LOW IQ SYNCHRONOUS BUCK CONTROLL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 16-WFQFN Exposed Pad.
In Stock: 9,889
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 100kHz ~ 3MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Phase Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7803HMSE#TRPBF | Analog Devices Inc. | LOW IQ SYNCHRONOUS BUCK CONTROLL | 100% | View |
| LTC7803JUD#TRPBF | Analog Devices Inc. | LOW IQ SYNCHRONOUS BUCK CONTROLL | 100% | View |
| LTC3891MPFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 20TSSOP | 97% | View |
| LTC3892HFE-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 28TSSOP | 82% | View |
| LTC3892MPUH-2#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 32QFN | 82% | View |
| LTC3892MPUH-2#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 32QFN | 82% | View |
Submit your RFQ for LTC7803JUD#WPBF and get a quote within 24 hours.
