40V, LOW IQ DUAL PHSE SYCH STP-D

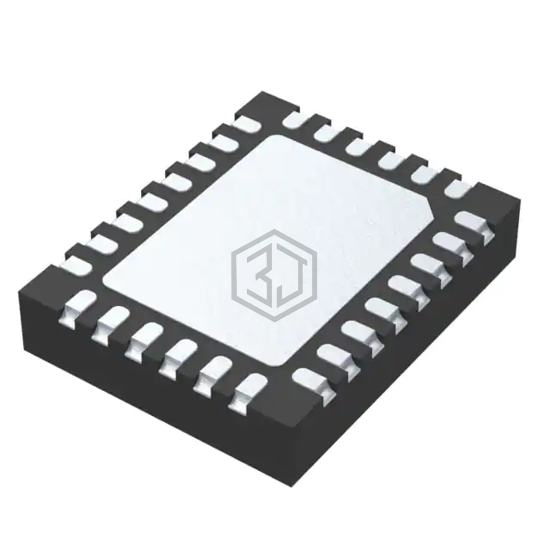

LTC7802EUFDM#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. 40V, LOW IQ DUAL PHSE SYCH STP-D. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 28-WFQFN Exposed Pad.
In Stock: 8,504
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 40V |
| Frequency - Switching | 100kHz ~ 3MHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC7802JUFDM#WPBF | Analog Devices Inc. | 40V, LOW IQ DUAL PHSE SYCH STP-D | 100% | View |
| LM5137QRHARQ1 | Texas Instruments | AUTOMOTIVE, 80V, 100% DUTY-CYCLE | 99% | View |
| LM5143QRWGRQ1 | Texas Instruments | IC POWER MANAGEMENT | 97% | View |
| LM25143QRHARQ1 | Texas Instruments | AUTOMOTIVE, 3.5-V TO 42-V LOW-IQ | 97% | View |
| LM5137FBQRHARQ1 | Texas Instruments | AUTOMOTIVE, 80V, 100% DUTY CYCLE | 91% | View |
| LM5146RGYR | Texas Instruments | IC REG CTRLR BUCK 20VQFN | 82% | View |
Submit your RFQ for LTC7802EUFDM#TRPBF and get a quote within 24 hours.
