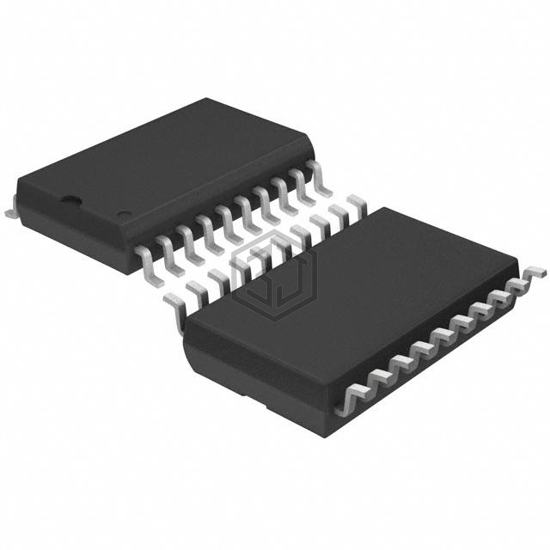

IC DAC 12BIT A-OUT 20SOIC
LTC7545ALSW#PBF is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT A-OUT 20SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 5V, 14.25V ~ 15.75V, package / case 20-SOIC (0.295", 7.50mm Width).
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V, 14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V, 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Architecture | R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SO |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX551AEUB+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 10UMAX | 100% | View |
| LTC7545ACG#TRPBF | Analog Devices Inc. | IC DAC 12BIT A-OUT 20SSOP | 100% | View |
| MAX543BCSA+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT A-OUT 8SOIC | 100% | View |
| LTC7545ACSW#TRPBF | Analog Devices Inc. | IC DAC 12BIT A-OUT 20SOIC | 100% | View |
| AD7548JP-REEL | Analog Devices Inc. | DAC, PARALLEL, 8 BITS INPUT | 99% | View |
| PM7542FS | Analog Devices Inc. | M-PROC COMPATIBLE 12-BIT DAC | 99% | View |
Submit your RFQ for LTC7545ALSW#PBF and get a quote within 24 hours.
