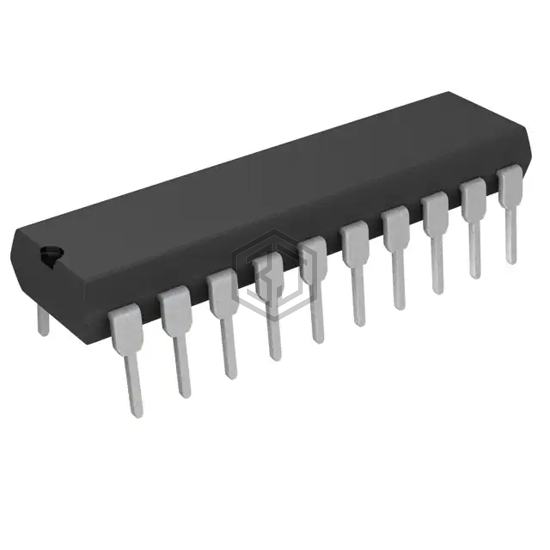

IC DAC 12BIT A-OUT 20DIP
LTC7545ACN#PBF is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT A-OUT 20DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, 14.25V ~ 15.75V, package / case 20-DIP (0.300", 7.62mm).
In Stock: 3,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 1µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V, 14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V, 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC8043FZ | Analog Devices Inc. | 12-BIT SERIAL IN MULTIPLYING DAC | 99% | View |
| PM7542FQ | Analog Devices Inc. | M-PROC COMPATIBLE 12-BIT DAC | 99% | View |
| PM7542EQ | Analog Devices Inc. | M-PROC COMPATIBLE 12-BIT DAC | 99% | View |
| LTC1595BIN8#PBF | Analog Devices Inc. | IC DAC 16BIT A-OUT 8DIP | 97% | View |
| DAC8221FPZ | Analog Devices Inc. | IC DAC 12BIT A-OUT 24DIP | 93% | View |
| DAC8248AW/883C | Analog Devices Inc. | DUAL 12-BIT (8-BIT BYTE) DOUBLE- | 93% | View |
Submit your RFQ for LTC7545ACN#PBF and get a quote within 24 hours.
