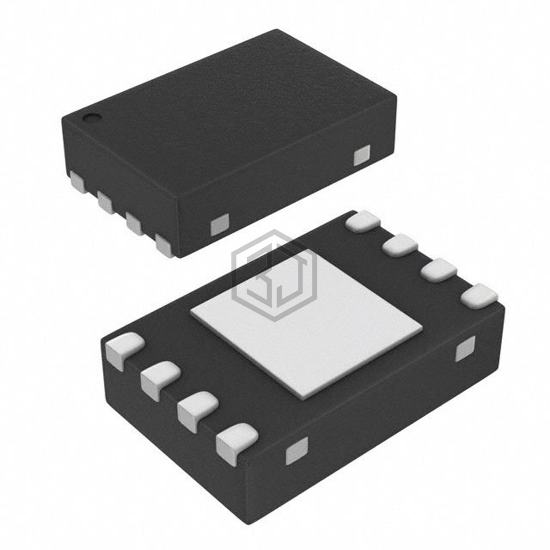

IC GATE DRVR HALF-BRIDGE 8DFN
LTC4449EDCB is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HALF-BRIDGE 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4V ~ 6.5V, package / case 8-WFDFN Exposed Pad.
In Stock: 9,487
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 6.5V |
| Logic Voltage - VIL, VIH | 3V, 6.5V |
| Current - Peak Output (Source, Sink) | 3.2A, 4.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 42 V |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
LTC4449EDCB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC4449IDCB#TRMPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8DFN | 100% | View |
| LTC4449IDCB#TRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8DFN | 100% | View |
| LTC4449EDCB#TRMPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8DFN | 100% | View |
| LTC4449EDCB#TRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8DFN | 100% | View |
| EL7155CSZ | Renesas Electronics America Inc | IC GATE DRVR HI/LOW SIDE 8SOIC | 74% | View |
| EL7155CSZ-T13 | Renesas Electronics America Inc | IC GATE DRVR HI/LOW SIDE 8SOIC | 74% | View |
