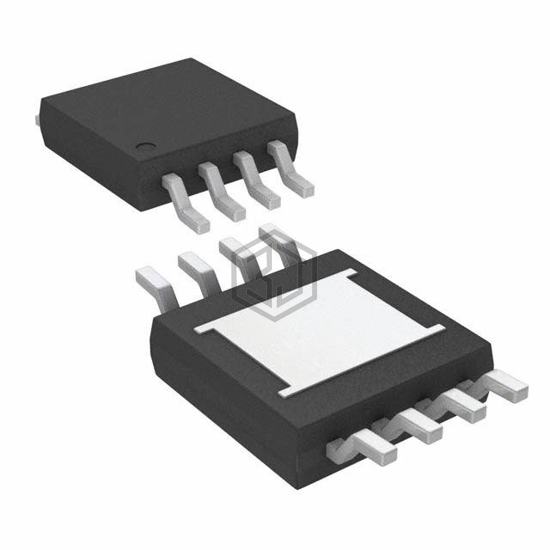

IC GATE DRVR HALF-BRIDGE 8MSOP
LTC4446IMS8E#PBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HALF-BRIDGE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 7.2V ~ 13.5V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 8,794
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 7.2V ~ 13.5V |
| Logic Voltage - VIL, VIH | 1.85V, 3.25V |
| Current - Peak Output (Source, Sink) | 2.5A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 114 V |
| Rise / Fall Time (Typ) | 8ns, 5ns |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC4444IMS8E#PBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 100% | View |
| LTC4444HMS8E#WTRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 100% | View |
| LTC4444EMS8E#WPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 100% | View |
| LTC4444HMS8E#WPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 100% | View |
| UCC27282DR | Texas Instruments | 3-A, 120-V HALF BRIDGE GATE DRIV | 89% | View |
| MP1921HR-A-LF-Z | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 10QFN | 87% | View |
Submit your RFQ for LTC4446IMS8E#PBF and get a quote within 24 hours.
