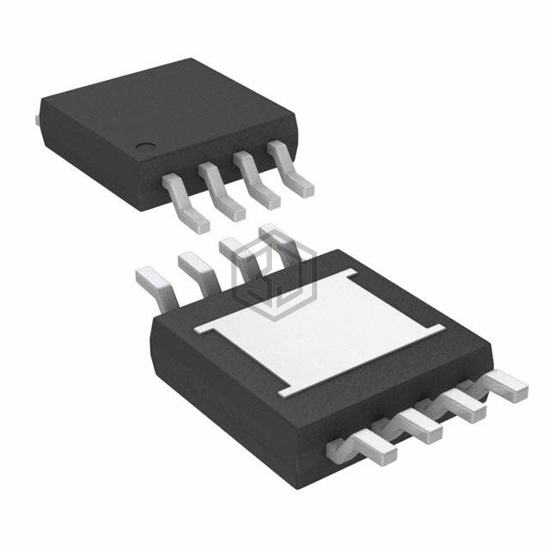

IC GATE DRVR HIGH-SIDE 8MSOP
LTC4440AMPMS8E-5#PBF is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. IC GATE DRVR HIGH-SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4V ~ 15V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 3,646
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 15V |
| Logic Voltage - VIL, VIH | 1.2V, 1.6V |
| Current - Peak Output (Source, Sink) | 1.1A, 1.1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 80 V |
| Rise / Fall Time (Typ) | 10ns, 7ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC4440AMPMS8E-5#TRPBF | Analog Devices Inc. | IC GATE DRVR HIGH-SIDE 8MSOP | 100% | View |
| FAN3100CSX | onsemi | IC GATE DRVR LOW-SIDE SOT23-5 | 79% | View |
| FAN3100CMPX | onsemi | IC GATE DRVR LOW-SIDE 6MLP | 79% | View |
| FL3100TMPX | onsemi | IC GATE DRVR LOW-SIDE 6MLP | 78% | View |
| L9856-TR-LF | STMicroelectronics | IC GATE DRVR HIGH-SIDE 8SO | 61% | View |
| L9856-TR | STMicroelectronics | IC GATE DRVR HIGH-SIDE 8SO | 61% | View |
Submit your RFQ for LTC4440AMPMS8E-5#PBF and get a quote within 24 hours.
