IC POWER MANAGEMENT

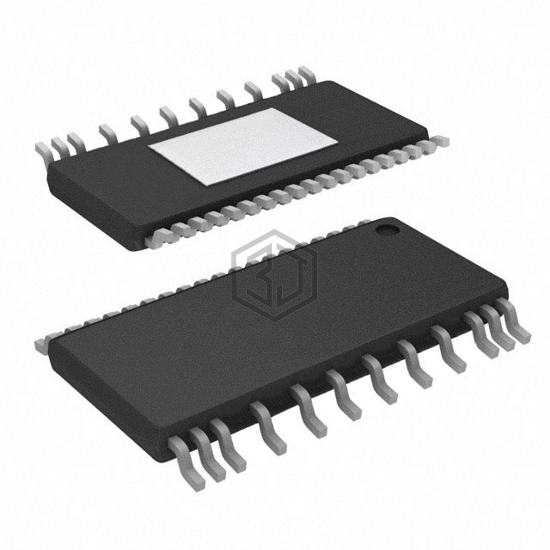

LTC3896EFE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 140V, package / case 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad.
In Stock: 4,970
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Negative |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 140V |
| Frequency - Switching | 50kHz ~ 900kHz |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) 31 Leads, Exposed Pad |
| Supplier Device Package | 38-TSSOP-EP |
LTC3896EFE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3896EFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 38TSSOP | 100% | View |
| LTC3896IFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 38TSSOP | 100% | View |
| LTC3896HFE#TRPBF | Analog Devices Inc. | IC REG BUCK BOOST 38TSSOP | 100% | View |
| LTC3896EFE#TRPBF | Analog Devices Inc. | IC REG BUCK BOOST 38TSSOP | 100% | View |
| LTC3896IFE#TRPBF | Analog Devices Inc. | IC REG BUCK BOOST 38TSSOP | 100% | View |
| LTC3896HFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK-BOOST 38TSSOP | 100% | View |
Submit your RFQ for LTC3896EFE and get a quote within 24 hours.
