PWR MGMT SWITCHING REGULATOR

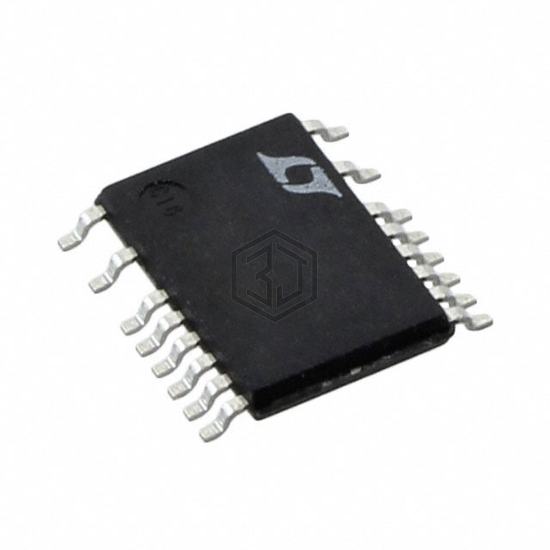

LTC3894HFE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. PWR MGMT SWITCHING REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 150V, package / case 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad.
In Stock: 3,493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 150V |
| Frequency - Switching | 50kHz ~ 850kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LM25088QMHX-1/NOPB | Texas Instruments | IC REG CTRLR BUCK 16TSSOP | 100% | View |
| LM25088MHX-1/NOPB | Texas Instruments | IC REG CTRLR BUCK 16TSSOP | 100% | View |
| LM5088MH-2/NOPB | Texas Instruments | IC REG CTRLR BUCK 16HTSSOP | 100% | View |
| LTC3807IUDC#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 20QFN | 99% | View |
| LTC3895HFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 38TSSOP | 99% | View |
| LTC7801IFE#PBF | Analog Devices Inc. | IC REG CTRLR SYNC BUCK 24TSSOP | 99% | View |
Submit your RFQ for LTC3894HFE#PBF and get a quote within 24 hours.
