IC POWER MANAGEMENT

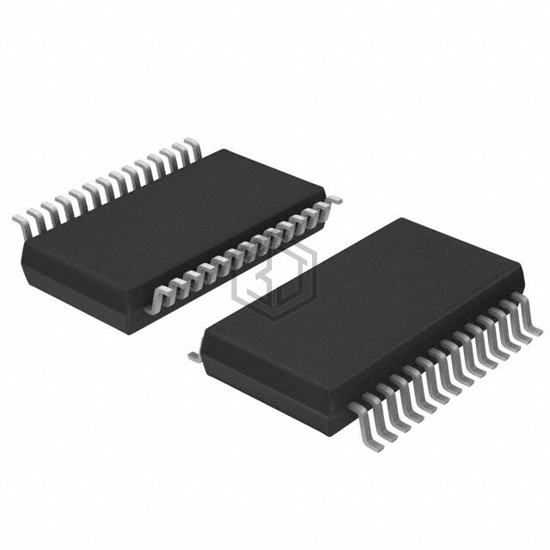

LTC3869IGN-2 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 38V, package / case 28-SSOP (0.154", 3.90mm Width).
In Stock: 9,395
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 38V |
| Frequency - Switching | 250kHz ~ 780kHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-SSOP |
LTC3869IGN-2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3869EUFD#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 28QFN | 100% | View |
| LTC3865IFE#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 38TSSOP | 99% | View |
| LTC3856IFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 38TSSOP | 99% | View |
| LTC3887EUJ-2#PBF | Analog Devices Inc. | DUAL OUTPUT POLYPHASE STEP-DOWN | 99% | View |
| LTC3865IUH#PBF | Linear Technology | DUAL, 2-PHASE SYNCHRONOUS DC/DC | 99% | View |
| LTC3874IUF-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 99% | View |
Submit your RFQ for LTC3869IGN-2 and get a quote within 24 hours.
