IC POWER MANAGEMENT

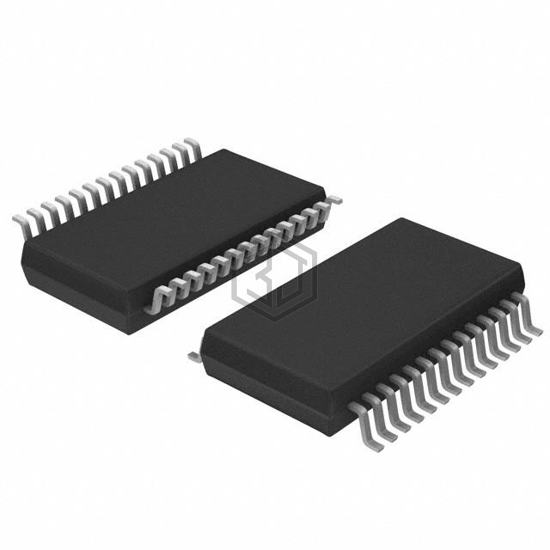

LTC3868IGN-1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4V ~ 24V, package / case 28-SSOP (0.154", 3.90mm Width).
In Stock: 4,685
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 24V |
| Frequency - Switching | 105kHz ~ 835kHz, 350kHz ~ 535kHz |
| Duty Cycle (Max) | 99.4% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-SSOP |
LTC3868IGN-1 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3858EUFD-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 28QFN | 100% | View |
| LTC3890EGN-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 28SSOP | 100% | View |
| LTC3858EUH#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 32QFN | 100% | View |
| LTC3858IUH-2#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 32QFN | 100% | View |
| LTC3858EUH-2#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 32QFN | 100% | View |
| LTC3890MPGN-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 28SSOP | 100% | View |
Submit your RFQ for LTC3868IGN-1 and get a quote within 24 hours.
