IC POWER MANAGEMENT

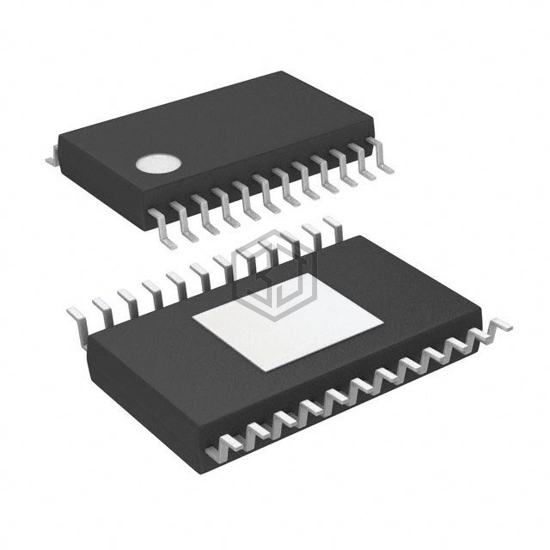

LTC3866EFE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 4,248
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 250kHz ~ 770kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-TSSOP |
LTC3866EFE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3883IUH#WTRPBF | Analog Devices Inc. | 1X PHBUCK DC/DC CNTR W/ DIG PWR | 100% | View |
| LTC3851IMSE-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16MSOP | 99% | View |
| LM3151MHE-3.3 | National Semiconductor | SWITCHING CONTROLLER, VOLTAGE-MO | 97% | View |
| LTC3855IUJ#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 40QFN | 84% | View |
| LTC3874EUF-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 84% | View |
| LTC3887IUJ-2#TRPBF | Analog Devices Inc. | DUAL OUTPUT POLYPHASE STEP-DOWN | 84% | View |
Submit your RFQ for LTC3866EFE and get a quote within 24 hours.
