IC POWER MANAGEMENT

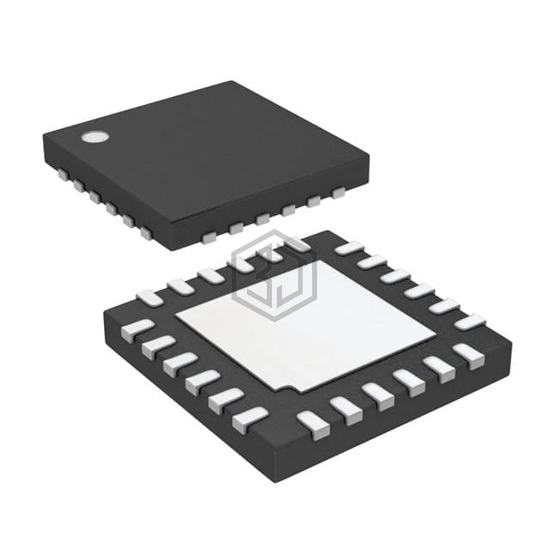

LTC3862EUH is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4V ~ 36V, package / case 24-WQFN Exposed Pad.
In Stock: 8,721
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, SEPIC |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 36V |
| Frequency - Switching | 75kHz ~ 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Phase Control, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WQFN Exposed Pad |
| Supplier Device Package | 24-QFN (5x5) |
LTC3862EUH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3862IUH#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24QFN | 100% | View |
| LTC3862IFE-2#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24TSSOP | 96% | View |
| LTC3862HUH-2#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24QFN | 96% | View |
| LTC3862EGN-2#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24SSOP | 96% | View |
| LTC3862HGN-2#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24SSOP | 96% | View |
| LTC3862HFE-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BOOST/SEPIC 24TSSOP | 91% | View |
Submit your RFQ for LTC3862EUH and get a quote within 24 hours.
