IC POWER MANAGEMENT

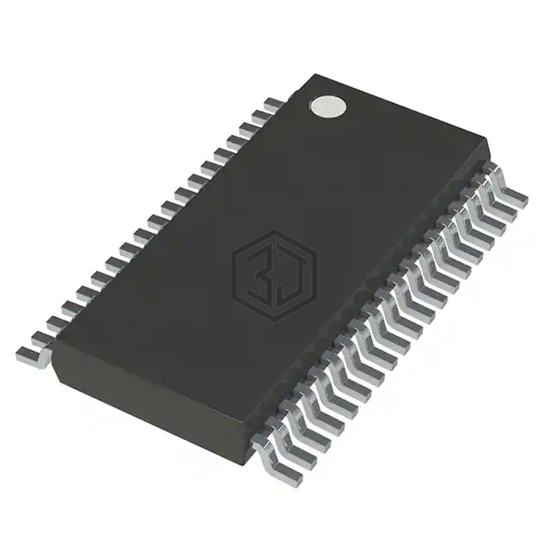

LTC3859AMPFE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 38-TFSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 1,383
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Buck-Boost, SEPIC |
| Number of Outputs | 3 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 115kHz ~ 835kHz, 350kHz ~ 535kHz |
| Duty Cycle (Max) | 99%, 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 38-TSSOP-EP |
LTC3859AMPFE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3859ALMPUHF#TRPBF | Analog Devices Inc. | IC REG CTRLR MULT TOPOLOGY 38QFN | 100% | View |
| LTC3859ALMPFE#PBF | Analog Devices Inc. | IC REG CTRLR MULT TOP 38TSSOP | 100% | View |
| LTC3859ALMPFE#TRPBF | Analog Devices Inc. | IC REG CTRLR MULT TOP 38TSSOP | 100% | View |
| LTC3859AMPUHF#PBF | Analog Devices Inc. | IC REG CTRLR MULT TOPOLOGY 38QFN | 100% | View |
| LTC3859AMPFE#PBF | Analog Devices Inc. | IC REG CTRLR MULT TOP 38TSSOP | 100% | View |
| LTC3859AMPFE#TRPBF | Analog Devices Inc. | IC REG CTRLR MULT TOP 38TSSOP | 100% | View |
Submit your RFQ for LTC3859AMPFE and get a quote within 24 hours.
