IC POWER MANAGEMENT

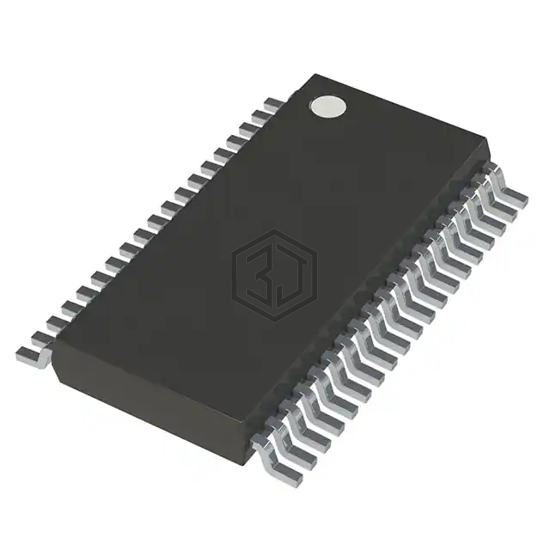

LTC3855EFE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC POWER MANAGEMENT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 38-TFSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 7,256
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 38V |
| Frequency - Switching | 250kHz ~ 770kHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 38-TSSOP-EP |
LTC3855EFE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3865IUH#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 32QFN | 100% | View |
| LTC3850IUF#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 28QFN | 99% | View |
| LTC3850EUFD#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 28QFN | 99% | View |
| LTC3869IUFD#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 28QFN | 99% | View |
| LTC3869IUF#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 28QFN | 99% | View |
| LTC3829IFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 38TSSOP | 91% | View |
Submit your RFQ for LTC3855EFE and get a quote within 24 hours.
