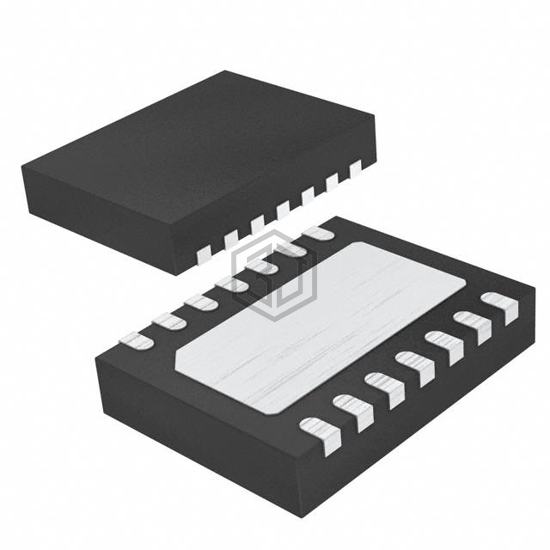

IC REG CTRLR BUCK 14-DFN
LTC3808EDE is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR BUCK 14-DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.75V ~ 9.8V, package / case 14-WFDFN Exposed Pad.
In Stock: 3,456
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.75V ~ 9.8V |
| Frequency - Switching | 250kHz ~ 750kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
LTC3808EDE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC3835EGN-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 16SSOP | 96% | View |
| LTC3835IFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 20TSSOP | 96% | View |
| LTC3834IGN-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16SSOP | 96% | View |
| LTC3775IUD#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16QFN | 94% | View |
| LTC3775EUD#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 16QFN | 94% | View |
| LTC3866IFE#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 24TSSOP | 94% | View |
Submit your RFQ for LTC3808EDE and get a quote within 24 hours.
